The Ultimate BMW Bolt Pattern & Centerbore Guide

Article | 05/02/2025 by Tom Maloney

Updated on 05/02/2025

If you’re new to aftermarket wheels for your BMW, you may find yourself a little overwhelmed by the various measurements that play a role in how a set of wheels fit your car. The first step is making sure the wheels you’re looking at are compatible with your car’s bolt pattern and centerbore. Regardless of whether they use the factory bolts or a stud conversion, the vast majority of BMWs use bolts to mount the wheel to the hub of the car. Unfortunately, the bolt pattern and centerbore varies between different BMW models and generations. So, how do you find out what bolt pattern and centerbore is your specific BMW needs? This guide will provide an in-depth breakdown of what bolt pattern and centerbore specific models and generations of BMWs use. If you’d like to view specific wheel fitments that we recommend for your BMW, be sure to review our BMW Wheel & Tire Fitment Guides.

BMW Bolt Pattern and Centerbore: General Rules

There are some general rules you can follow that apply to most BMW models. These are not 100% consistent, but they can be useful to give you an idea of what hardware and specifications your BMW uses at a quick glance:

Most modern E and F-chassis BMW passenger cars that have 5 lugs use a 5x120 bolt pattern and 72.56mm (sometimes shown as 72.6mm) centerbore. Newer G-chassis BMW models use a 5x112 bolt pattern and 66.6mm centerbore. Many older BMWs used a 4x100 bolt pattern, but it is not uncommon to see these cars with a 5 lug conversion, especially on chassis that enthusiasts favor like the E30. There are exceptions to these rules, which we outline below, but these rules will give you a starting point. In addition to knowing your bolt pattern and centerbore, knowing the mounting hardware specifications of your BMW is another important part of ensuring wheel compatibility.

BMW Mounting Hardware Specifications:

Nuts and bolts play an important role in not just wheel compatibility but safety. BMWs generally come from the factory with wheel bolts that insert into the wheels and thread into the hub directly through the brake rotor. However, stud conversions are a common aftermarket alternative and those add studs to the hub via either a thread-in process or a press-in process, and these studs remain attached to the car when the wheel is removed. Open-ended nuts are then used to fasten the wheels to the car.

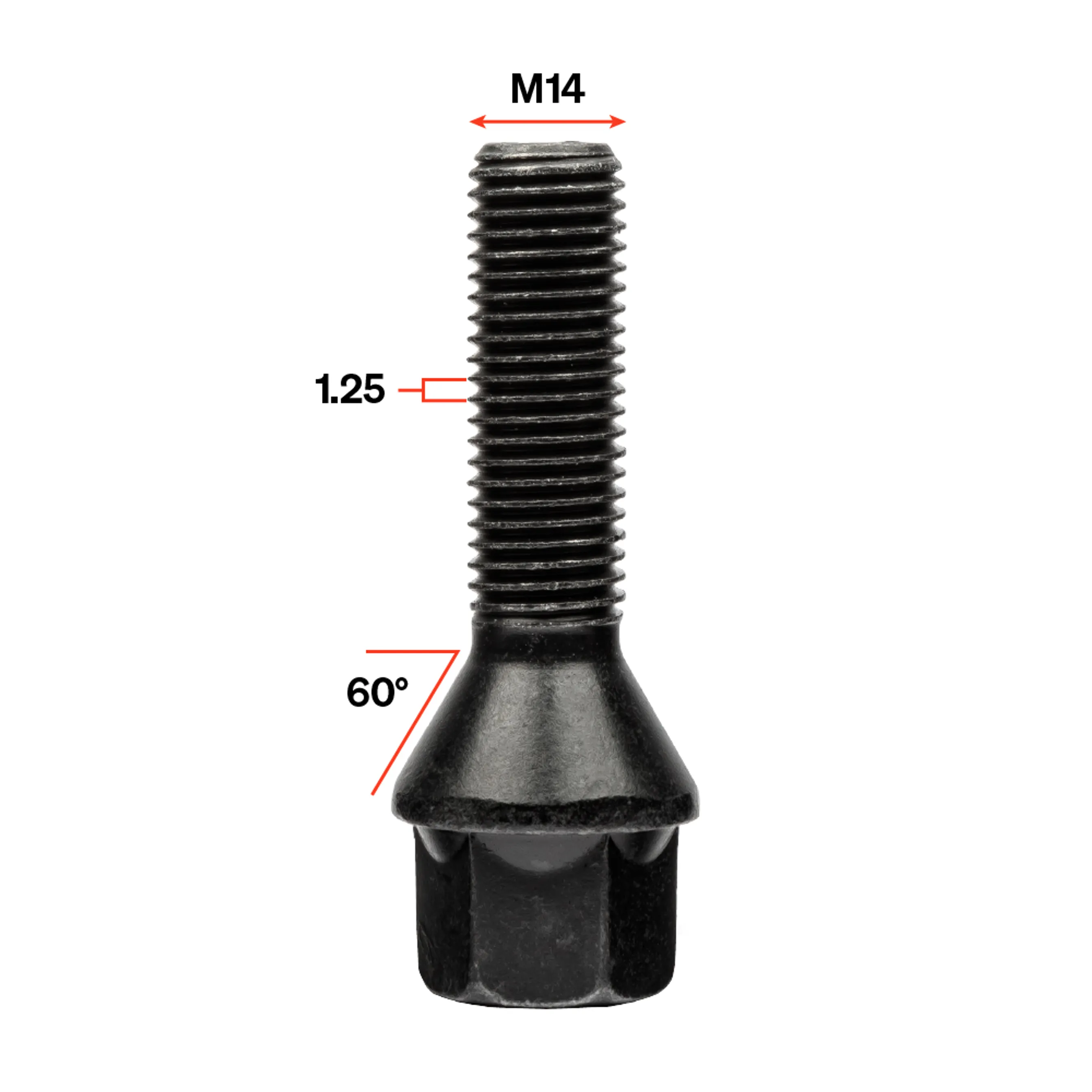

BMW uses 60° conical lug seats on its wheel bolts. The thread pitch and bolt thickness used will vary between different chassis and generations. E-chassis passenger cars use M12x1.5mm bolts while F-chassis and newer cars use M14x1.25mm bolts. All BMW bolts use a 60° conical lug seat type. Certain E-chassis SUV models use M14x1.25mm hardware. See the table below for a full reference. All BMW wheels that Apex produces are compatible with 60° conical lug bolts or nuts.

Wheel spacers can be used with stock or aftermarket wheels to improve appearance and achieve a “flush” look. These can also be used to clear brake and suspension packages that a wheel/tire fitment ordinarily would not be able to clear. Spacers will require longer wheel bolts or studs to support the spacer’s additional width. You can find Apex spacers for BMW, stud kits, and bolts on our accessory pages.

BMW Bolt Pattern, Centerbore, and Wheel Specs

YearModelsChassisBolt PatternCenter BoreLug SeatHardware SpecsFitment Guide
2004-20131-Series:128i, 135i, 135isE82/E885x12072.56mm60° ConicalM12x1.5mmE82/E88 1-Series Fitment Guide
20111ME825x12072.56mm60° ConicalM12x1.5mmE82 1M Fitment Guide
2011-20191-Series: 114i, 116i, 118i, 116d, 118d, 120d, 125i, 125d, 135iF20/F215x12072.56mm60° ConicalM14x1.25mmF20/F21 1-Series Fitment Guide
2014-20212-Series: 228i, 230i, M235i, M240iF22/F235x12072.56mm60° ConicalM14x1.25mmF22/F23 2-Series Fitment Guide
2022-Current2-Series: 230i, 230i xDrive, M240i, M240i xDriveG425x11266.6mm60° ConicalM14x1.25mmG42 2-Series Fitment Guide
1975 - 19833-Series: 315, 316, 318, 318i, 320, 320i, 320/6, 323iE234x10057.1mm60° ConicalM12x1.5mmN/A
1983-19943-Series: 318i, 325i, 325is, 325ixE304x10057.1mm60° ConicalM12x1.5mmE30 3-Series Fitment Guide
1986-1991M3E305x12072.56mm60° ConicalM12x1.5mmE30 M3 Fitment Guide
1992-19993 Series: 318i, 318is, 318ti, 325i, 325is, 325iC, 328i, 328is, 328iC,E365x12072.56mm60° ConicalM12x1.5mmE36 3-Series Fitment Guide
1995-1999M3E365x12072.56mm60° ConicalM12x1.5mmE36 M3 Fitment Guide
1999-20063 Series: 323i, 323iT, 328i, 325i, 325ci, 325xi, 325xiT, 330i, 330ci, 330xiE465x12072.56mm60° ConicalM12x1.5mmE46 3-Series Fitment Guide
2001-2006M3E465x12072.56mm60° ConicalM12x1.5mmE46 M3 Fitment Guide
2008-20133 series: 328i, 330i, 335iE90/E91/E92/E935x12072.56mm60° ConicalM12x1.5mmE90/E91/E92/E93 3 series fitment Fitment Guide
2009-20113 series: 328i, 335i, LCIE90/E915x12072.56mm60° ConicalM12x1.5mmE90/E91 3 series fitment LCI Fitment Guide
2008-2013M3E90/E92/E935x12072.56mm60° ConicalM12x1.5mmE90/E92/E93 M3 Fitment Guide
2012-20193 series: 328i, 330i, 335i, 340iF305x12072.56mm60° ConicalM14x1.25mmF30 3-series Fitment Guide
2014-2018M3F805x12072.56mm60° ConicalM14x1.25mmF80 M3 Fiment Guide
2019-Current3 series: 320i, 328i, 330i, 335i, M340iG20/G215x11266.6mm60° ConicalM14x1.25mmG20/G21 3 seriesFitment Guide
2020-CurrentM3G805x11266.6mm60° ConicalM14x1.25mmG80 M3 Fitment Guide
2013-20204-Series: 428i, 430i, 435i, 440iF32/F33/F36 5x12072.56mm60° ConicalM14x1.25mmF32/F33/F36 4-series Fitment Guide
2015-2020M4F82/F835x12072.56mm60° ConicalM14x1.25mmF82/F83 M4 Fitment Guide
2020-current4-Series: 430i, 430i xDrive, M440i, M440i xDriveG22/G23/G265x11266.6mm60° ConicalM14x1.25mmG22/G23/G26 4-series Fitment Guide
2022-currenti4 G265x11266.6mm60° ConicalM14x1.25mmG26 i4 Fitment Guide
1972 - 19845-Series: 518, 520, 520i, 525, 528, 528i, 530i, 530 MLE, 533i, M535iE124x10057.1mm60° ConicalM12x1.5mmN/A
1982 - 19885-Series: 524td, 528e, 533i, 535i, 535is, M5E285x12072.56mm60° ConicalM12x1.5mmN/A
1995-20045-Series: 523i, 525i, 528i, 530i, 540iE395x12074.1mm60° ConicalM12x1.5mmE39 5-Series Fitment Guide
1998-2003M5E395x12074.1mm60° ConicalM12x1.5mmE39 M5 Fitment Guide
2003-20105-Series: 528i, 530i, 535i, 540i, 545i, 550iE60/E615x12072.56mm60° ConicalM12x1.5mmE60 5-Series Fitment Guide
2005-2010M5E60/E615x12072.56mm60° ConicalM12x1.5mmE60 M5 Fitment Guide
2010-20165 - Series: 520i, 528i, 535i, 550i, ActiveHybrid 5F10/F115x12072.56mm60° ConicalM14x1.25mmF10 5-Series Fitment Guide
2011-2016M5F105x12072.56mm60° ConicalM14x1.25mmF10 M5 Fitment Guide
2017-20245-Series: 530i, 530e, 540i, 545e, M550i xDrive, Alpina B5G30/G315x11266.6mm60° ConicalM14x1.25mmG30 5-Series Fitment Guide
2024-current5-Series: 530i, 540i, 550e, i5 eDrive40, and i5 M60G60/G615x11266.6mm60° ConicalM14x1.25mmN/A
2025-currentM5G90, G915x13266.6mm60° ConicalM14x1.25mmN/A
1976-19896-Series: 630Cs, 630Csi, 633Csi, M635Csi, M6, L6E245x12072.56mm60° ConicalM12x1.5mmN/A
2004-20106-Series: 630i, 630Ci, 645Ci, 650i, M6E63/E645x12072.56mm60° ConicalM12x1.5mmN/A
2011-20176-Series: 640i, 650i, Alpina B6, M6F06/F12/F135x12072.56mm60° ConicalM14x1.25mmN/A
2018-Present6-Series: 630iGT, 640iGT, 640i xDrive GTG325x11266.6mm60° ConicalM14x1.25mmN/A
1977-19867-Series: 725i, 728, 728i, 730, 730i, 732i, 733i, 735i, 745i, L7E235x12072.56mm60° ConicalM12x1.5mmN/A
1987-19937-Series: 730i, 735i, 735iL, 740i, 740iL, 750iLE325x12072.56mm60° ConicalM12x1.5mmN/A
1994-20017-Series: 725tds, 728i&iL, 730i&iL, 735i&iL, 730d, 740d, 740i&iL, 750iLE385x12072.56mm60° ConicalM12x1.5mmN/A
2002-20097-Series: 730i, 740i, 745i, 750i, 760iE65/E66/E67/E685x12072.56mm60° ConicalM12x1.5mmN/A
2010-20157-Series: 730i, 740dX, 740i, 750i, 750iX, 760i, ALPINA B7, ALPINA B7X, Hybrid 7F01/F02/F03/F045x12072.56mm60° ConicalM14x1.25mmN/A
2016-20217-Series: 740i xDrive, 750i xDrive, 740eG11/G125x11266.6mm60° ConicalM14x1.25mmN/A
2022-Present7-Series: 740i xDrive, 750i xDrive, 740eG70/G725x11266.6mm60° ConicalM14x1.25mmN/A
1990-19998-Series: 830Ci, 840Ci, 850i, 850Ci, 850CSiE315x12072.56mm60° ConicalM12x1.5mmN/A
2018-Present8 Series: 840d, 840i, 840ix, M850iG14/G15/G165x11266.6mm60° ConicalM14x1.25mmN/A
1995-2002Z3E36/7/85x12072.56mm60° ConicalM12x1.5mmZ3 Fitment Guide
1997-2002Z3ME36/7/85x12072.56mm60° ConicalM12x1.5mmZ3M Fitment Guide
2003-2008Z4E85/E865x12072.56mm60° ConicalM12x1.5mmE85 Z4 Fitment Guide
2002-2008Z4MZ4M5x12072.56mm60° ConicalM12x1.5mmZ4M Fitment Guide
2009-2016Z4: sDrive30i, sDrive28i, sDrive35i, sDrive35isE895x12072.56mm60° ConicalM12x1.5mmE89 Z4 Fitment Guide
2019-PresentZ4: sDrive30i, M40iG295x11266.6mm60° ConicalM14x1.25mmG29 Z4 Fitment Guide
2009-2015X1: sDrive28i, xDrive28i, xDrive35iE845x12072.56mm60° ConicalM12x1.5mmN/A
2016-2022X1: sDrive28i, xDrive28iF485x11266.6mm60° ConicalM14x1.25mmN/A
2023-PresentX1: xDrive28i, M35iU115x11266.6mm60° ConicalM14x1.25mmN/A
2018-2022X2: sDrive18i, sDrive20i, xDrive28i, M35iF395x11266.6mm60° ConicalM14x1.25mmN/A
2023-PresentX2: sDrive20i, xDrive28i, sDrive18d, sDrive20d, xDrive20d, eDrive20, xDrive30, M35iU105x11266.6mm60° ConicalM14x1.25mmN/A
2004-2010X3: 3.0si, xDrive30iE83 5x12072.56mm60° ConicalM12x1.5mmN/A
2011-2017X3: sDrive28i, xDrive28i, xDrive28d, xDrive35iF25 5x12072.56mm60° ConicalM14x1.25mmN/A
2018-2024X3: sDrive30i, xDrive30i, M40iG015x11266.6mm60° ConicalM14x1.25mmG01 X3 Fitment Guide
2019-PresentX3M, X3M competitionF975x11266.6mm60° ConicalM14x1.25mmF97 X3M Fitment Guide
2024-currentX3: 20xDrive, 30e xDrive, M50 xDriveG455x11266.6mm60° ConicalM14x1.25mmN/A
2015-2018X4: xDrive28i, xDrive35i, M40iF265x12072.56mm60° ConicalM14x1.25mmN/A
2019-PresentX4: xDrive30i, M40iG025x11266.6mm60° ConicalM14x1.25mmG02 X4 Fitment Guide
2019-CurrentX4M, X4M CompetitionF985x11266.6mm60° ConicalM14x1.25mmF98 X4M Fitment Guide
2000-2006X5: 3.0i, 4.4i, 4.6is, 4.8isE535x12074.1mm60° ConicalM14x1.25mmN/A
2007-2013X5: 3.0si, xDrive30i, xDrive35d, 4.8i, xDrive48iE705x12074.1mm60° ConicalM14x1.25mmN/A
2014-2018X5: sDrive35i, xDrive35i, xDrive35d, xDrive50iF155x12074.1mm60° ConicalM14x1.25mmN/A
2019-PresentX5: sDrive40i, xDrive40i, xDrive50i, M50iG055x11266.6mm60° ConicalM14x1.25mmG05 X3 Fitment Guide
2009-2014X5ME705x12074.1mm front, 72.56mm rear60° ConicalM14x1.25mmN/A
2015-2023X5MF855x12074.1mm60° ConicalM14x1.25mmN/A
2023-PresentX5MF955x11266.6mm60° ConicalM14x1.25mmN/A
2008-2014X6: xDrive35i, xDrive50iE715x12074.1mm front, 72.56mm rear60° ConicalM14x1.25mmN/A
2015-2019X6: sDrive35i, xDrive35i, xDrive50iF165x12074.1mm60° ConicalM14x1.25mmN/A
2020-PresentX6: sDrive40i, xDrive40i, M50i, M60iG065x11266.6mm60° ConicalM14x1.25mmG06 X6 Fitment Guide
2008-2014X6ME715x12074.1mm front, 72.56mm rear60° ConicalM14x1.25mmN/A
2020-PresentX6MF965x11266.6mm60° ConicalM14x1.25mmN/A
2018-2024X7G075x11266.6mm60° ConicalM14x1.25mmN/A

Notable Transitions:

While the above table organizes all of the various bolt patterns by chassis, there are some important transitions BMW enthusiasts should keep in mind to use as a rule of thumb. There are a number of exceptions to these rules, so be sure to consult the table above for the exact specifications of your chassis.

  • E-chassis BMW passenger cars use M12x1.5mm wheel bolts.
  • F-chassis and newer BMWs use M14x1.25mm bolts.
  • The bolt pattern and centerbore has changed several times within BMW’s lineup. Earlier models, including the E30 (excluding the E30 M3) used 4x100 wheels with 57.1mm centerbore.
  • Most modern E-chassis BMWs use a 5x120mm bolt pattern and 72.56mm (sometimes listed as 72.6mm) centerbore.
  • The newer generations of G-chassis BMW use 5x112mm BP and 66.6mm centerbore wheels.

Notable Exceptions:

There have been a number of inconsistencies or exceptions in BMW’s wheel specifications over the years. The first significant one for enthusiasts is the E39 5 Series. While the E39 maintained the standard 5x120 bolt pattern, the centerbore for these cars was increased to 74.1mm from the standard 72.56mm. This change was only seen on this specific generation of 5 Series – a chassis we really love. As such, Apex is one of the few aftermarket wheel manufacturers that produces E39-specific wheels with the correct centerbore.

BMW SAVs/SUVs are another departure from the BMW passenger car specifications. Starting with the first-generation E53 X5. All X5s use M14x1.25mm hardware; standard BMW passenger cars later matched this specification when they transitioned to F-chassis. E70 X5s introduced a new, larger centerbore of 74.1mm across most of their models, but select models – including some X6 and X5M/X6Ms – use different centerbores on the front (74.1mm) and the rear (72.56mm). 5x120mm was the standard bolt pattern through the F15 generation of X5 and X6,. Once these models transitioned to the G-chassis, the bolt pattern and centerbore for BMW SUVs switched to 5x112mm and 66.6mm.

Some of BMW’s special M models differ from the general F to G-chassis transition rule. BMW used F-chassis codes for select M models that were based on G-chassis cars. Examples include the F90 M5, which was based on the G30 5 Series, and the F97 X3M, which was based on the G01 X3. This break in sequence means that these particular M model F-chassis cars require the 5x112mm bolt pattern and 66.6mm centerbore seen on most newer models. Again, consult the table above to confirm your specific bolt pattern and centerbore if you’re unsure of whether or not this applies to your car.

Lastly, there are some other one-offs. The new G90 and G91 M5 have a 5x132mm bolt pattern and 66.6mm centerbore, which is, for now, a unique specification in BMW’s lineup.
