BMW E90 E91 E92 E93 3 Series Wheel & Tire Fitment Guide

Are you looking for the perfect wheel fitment for your 2006-2012 BMW E90, E91, E92, E93 3 series? Our E9X fitment guide has the best wheel fitments and the widest possible tires available for one of the most popular chassis in the BMW enthusiast community. From appearance-oriented concave fitments focused on stance to road course and drag fitments that target meaty tire options, our 3 series wheels have been community favorites for good reason. Our Forged wheels have become popular options focused on ultimate performance and include our ARC-8RT, ML-10RT, VS-5RS, EC-7RS, and SM-10RS designs. Our Flow Formed wheels have been a mainstay of the E9x community for years and are popular for their high quality in combination with their affordable price point. These include our ARC-8s, EC-7, and SM-10s.  These wheel fitments are compatible with all models of E90, E91, E92, and E93 including 316i, 316d, 318i, 318d, 320i, 320si, 320d, 323i, 325i, 325d, 328i, 330i, 330d, 335i, 335d along with xi and touring variants. If you’re looking for wheels for your E90, E92 or E93 M3, head over to our BMW E90 E92 E93 M3 Wheel & Tire Fitment Guide.

LCI sedans and wagons (2009 and up) have different fitment requirements for the rear wheels. Rear fender clearance is reduced by 8mm due to a wider rear track width. See underlined notes for information regarding these cars. This does NOT apply to LCI coupe (E92) and convertible (E93) models.

Chassis Introduction The E9x generation of 3-Series is loved for its out-of-the-box capabilities, as well as endless aftermarket support. We produce a wide range of fitments for the E9x platform ranging from OEM+ replacement sizes to aggressive track/race fitments. Note: Due to BMW production changes, the LCI sedan and wagon has reduced rear wheel clearance. See underlined notes below for our specific recommendations.

OEM+ Wheel Fitment

Easy upgrades for street-driven cars

  • Silver BMW 3 Series - ARC-8 in Hyper Silver
    BMW 3 Series E90 E91 E92 E93
  • Grey BMW 3 Series - ARC-8 in Anthracite
    BMW 3 Series E90 E91 E92 E93
  • Silver BMW 3 Series - ARC-8 in Hyper Black
    BMW 3 Series E90 E91 E92 E93
  • Grey BMW 3 Series - EC-7 in Race Silver
    BMW 3 Series E90 E91 E92 E93

These fitments prioritize (in order): 1. Ease of fitment 2. Aesthetics 3. Performance

Ideal for the driver who wants a no-nonsense direct bolt-on fitment. These fitments are a small step up from stock wheels and tires, and offer a small but noticeable performance improvement.

Square Setups Recommended for most types of street and performance driving. Allows proper front-to-rear tire rotation to extend tire life & improve handling balance.

Wheels

  • Front Wheel Size: 17x8.5" ET40
  • Rear Wheel Size: 17x8.5" ET40
    • Available in: ARC-8, ARC-8RT, ML-10RT

Tires

  • APEX Staff Pick:
    • Front Tire Size: 235/40-17
    • Rear Tire Size: 235/40-17
    • Direct fit.
    • OEM 225/45-17 tires can also be used.
    • 235/45-17 tires can also be used as a direct fit.
    • 245/40-17 tires can also be used, but 5mm front spacers may be required with certain aftermarket suspensions, see below.

Wheels

  • Front Wheel Size: 18x8.5" ET35, ET38 (ARC-8) or ET40
  • Rear Wheel Size: 18x8.5" ET35, ET38 (ARC-8) or ET40
    • Available in: ARC-8, Arc-8RT, EC-7, ML-10RT, SM-10, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 235/40-18
    • Rear Tire Size: 235/40-18
    • Direct fit
    • OEM 225/40-18 tires can also be used.
    • 245/40-18 tires can also be used, but 5mm front spacers may be required with certain aftermarket suspensions, see below. 12mm spacers recommended for VS-5RS.

Wheels

  • Front Wheel Size: 19x8.5" ET35
  • Rear Wheel Size: 19x8.5" ET35
    • Available in: ARC-8, EC-7, SM-10, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 235/35-19
    • Rear Tire Size: 235/35-19
    • Direct fit
    • 245/35-19 tires can also be used, but 5mm front spacers may be required with certain aftermarket suspensions, see below.

Wheels

  • Front Wheel Size: 19x9" ET28 (ARC-8) or ET30
  • Rear Wheel Size: 19x9" ET28 (ARC-8) or ET30
    • Available in: ARC-8, ARC-8RT, EC-7, ML-10RT, SM-10, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 245/35-19
    • Rear Tire Size: 245/35-19
    • Direct fit
    • 5mm front spacers may be required with certain aftermarket suspensions, see below.

Staggered Setups Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width.

Wheels

  • Front Wheel Size: 17x8.5" ET40
  • Rear Wheel Size: 17x9.5" ET35
    • Available in: ARC-8, ARC-8RT, ML-10RT

Tires

  • APEX Staff Pick:
    • Front Tire Size: 225/45-17
    • Rear Tire Size: 255/40-17
    • Direct fit.
    • 235/40-17 front tires can also be used as a direct fit
    • 275/40-17 rear tires may require rolled fenders and/or negative camber depending on ride height.
    • xDrive must use 225/45-17 front and 255/40-17 rear tires.

Wheels

  • Front Wheel Size: 18x8.5" ET35, ET38 (ARC-8) or ET40
  • Rear Wheel Size: 18x9.5" ET35
    • Available in: ARC-8, ARC-8RT, EC-7, ML-10RT, SM-10, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 235/40-18
    • Rear Tire Size: 265/35-18
    • Direct fit.
    • 245/40-18 front tires can be used.
    • 275/35-18 rear tires may require rolled fenders and/or negative camber depending on ride height.
    • LCI: Sedan and wagon may require rolled rear fenders and/or negative camber to prevent rubbing. 255/35-18 rear tires may be used as a direct fit.
    • xDrive: must use 235/40-18 front and 265/35-18 rear tires.
    • xDrive LCI: sedan and wagon must use 225/40-18 front and 255/35-18 rear tires.
    • xDrive must use 225/45-17 front and 255/40-17 rear tires.

Wheels

  • Front Wheel Size: 18x9" ET30 or ET31 (EC-7)
  • Rear Wheel Size: 18x9.5" ET35
    • Available in: ARC-8, ARC-8RT, EC-7, EC-7RS, ML-10RT, SM-10, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 235/40-18
    • Rear Tire Size: 265/35-18
    • 5mm front spacers may be required with certain aftermarket suspensions, see below.
    • 245/40-18 front tires can be used.
    • 275/35-18 rear tires may require rolled fenders and/or negative camber depending on ride height.
    • LCI: Sedan and wagon may require rolled rear fenders and/or negative camber to prevent rubbing. 255/35-18 rear tires may be used as a direct fit.
    • xDrive: must use 235/40-18 front and 265/35-18 rear tires.
    • xDrive LCI: sedan and wagon must use 225/40-18 front and 255/35-18 rear tires.

Wheels

  • Front Wheel Size: 19x8.5" ET35
  • Rear Wheel Size: 19x9.5" ET33 (EC-7) or ET35
    • Available in: ARC-8, EC-7, SM-10, VS-5RS

Tires

  • APEX Staff Pick:
    • Front Tire Size: 235/35-19
    • Rear Tire Size: 265/30-19
    • Direct fit.
    • 245/35-19 front tires can be used.
    • 275/30-19 rear tires may require rolled fenders and/or negative camber depending on ride height.
    • LCI: Sedan and wagon may require rolled rear fenders and/or negative camber to prevent rubbing.
    • xDrive: must use 235/35-19 front and 265/30-19 rear tires.
    • xDrive LCI: sedan and wagon must use 225/35-19 front and 255/30-19 rear tires.

LCI Sedan and Wagon-Specific Staggered Setup Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width. This staggered fitment is produced specifically for the E90/E91 chassis where rear fender clearance is reduced.

Wheels

  • Front Wheel Size: 18x8.5" ET35
  • Rear Wheel Size: 18x9.5" ET43
    • Available in: EC-7

Tires

  • APEX Staff Pick:
    • Front Tire Size: 235/40-18
    • Rear Tire Size: 265/35-18
    • Direct fit.
    • 245/40-18 front tires can be used.
    • 275/35-18 rear tires may require rolled fenders and/or negative camber depending on ride height.
    • xDrive LCI: sedan and wagon must use 225/40-18 front and 255/35-18 rear tires.

Aggressive Street Wheel Fitment

Aggressive fitments focused on appearance

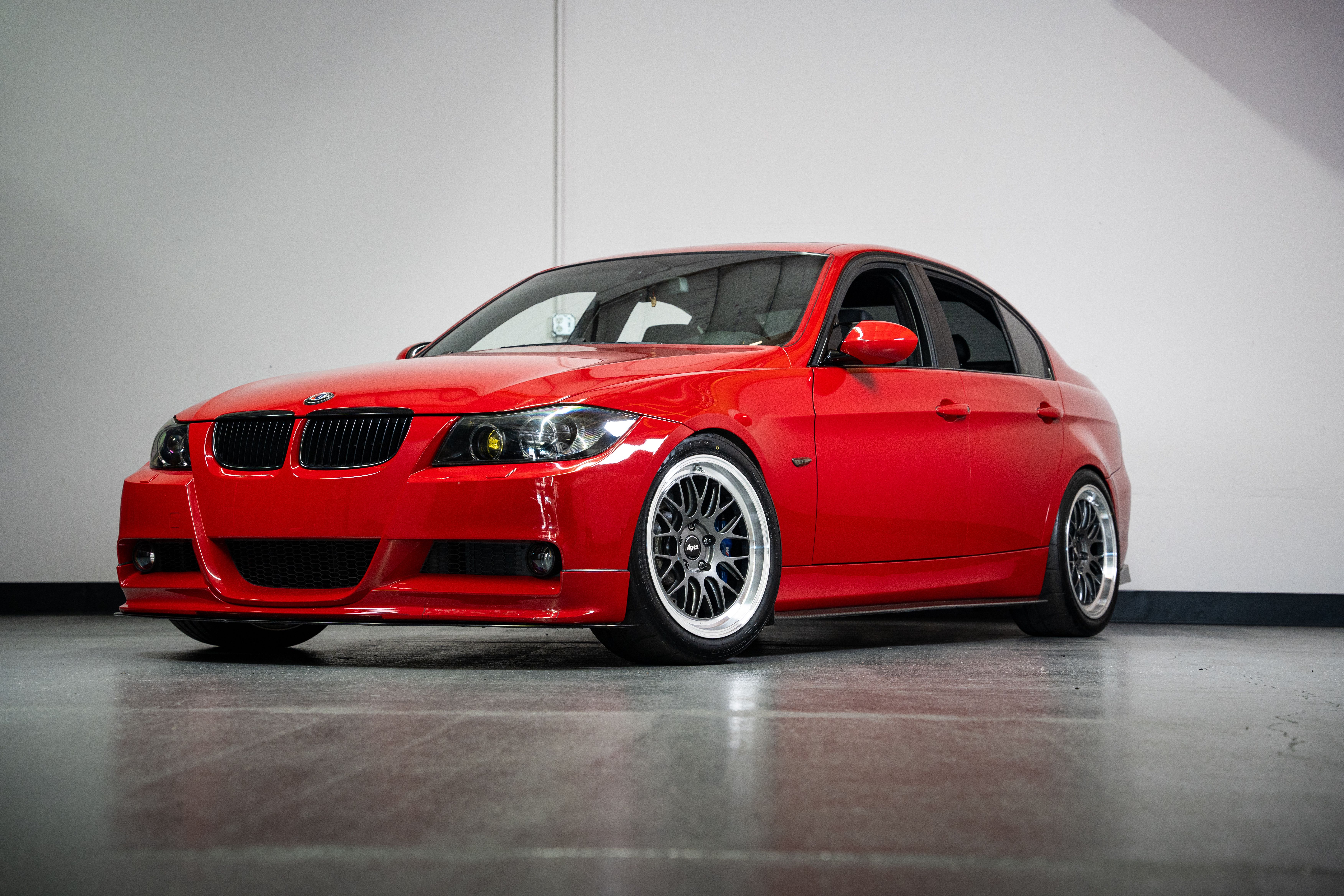

  • Red BMW 3 Series - ML-10RT in Machined Lip Anthracite
    BMW 3 Series E90 E91 E92 E93
  • Red BMW 3 Series - ML-10RT in Machined Lip Gloss Motorsport Gold
    BMW 3 Series E90 E91 E92 E93
  • Blue BMW 3 Series - ARC-8 in Hyper Black
    BMW 3 Series E90 E91 E92 E93
  • Black BMW 3 Series - ARC-8 in Anthracite
    BMW 3 Series E90 E91 E92 E93
  • White BMW 3 Series - EC-7 in Anthracite
    BMW 3 Series E90 E91 E92 E93
  • Green BMW 3 Series - ARC-8 in Anthracite
    BMW 3 Series E90 E91 E92 E93
  • 1 / 2

These fitments prioritize (in order): 1. Aesthetics 2. Performance 3. Ease of fitment

Ideal for the driver who wants to fill out the wheel wells with the widest possible rubber and perfectly flush offsets. Sometimes these fitments are a direct bolt-on, but often times require small spacers, negative camber, or rolled fenders for the sake of dialing in the perfect blend of function and form.

Staggered Setups Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width.

Wheels

  • Front Wheel Size: 17x9" ET30
  • Rear Wheel Size: 17x9.5" ET35
    • Available in: ARC-8, ARC-8RT, ML-10RT, VS-5RS

Tires

  • APEX Staff Pick:
    • Front Tire Size: 245/40-17
    • Rear Tire Size: 255/40-17
    • Direct fit.
    • 235/40-17 front tires can also be used as a direct fit
    • 235/45-17 front tires can also be used as a direct fit
    • 275/40-17 rear tires may require rolled fenders and/or negative camber depending on ride height.
    • Coilovers that limit inner clearance will typically require 5mm spacers with 245 or wider tires.
    • xDrive must use 225/45-17 front and 255/40-17 rear tires.

Wheels

  • Front Wheel Size: 18x9" ET30 or ET31 (EC-7)
  • Rear Wheel Size: 18x9.5" ET22
    • Available in: ARC-8, ARC-8RT, EC-7, EC-7RS, ML-10RT, SM-10, SM-10RS, VS-5RS

Tires

  • APEX Staff Pick:
    • Front Tire Size: 235/40-18
    • Rear Tire Size: 255/35-18
    • 245/40-18 or 255/35-18 front tires can also be used as a direct fit, but 5mm front spacers may be required with certain aftermarket suspensions, see below.
    • Rear rolled fenders may be required.
    • 265/35-18 rear tires can be used with rolled fenders and/or negative camber depending on ride height.
    • LCI: Sedan and wagon must use 18x9.5" ET35 rear wheels, which may require rolled rear fenders and/or negative camber.
    • xDrive must use 235/40-18 front and 265/35-18 rear tires.
    • xDrive LCI sedan and wagon must use 225/40-18 front and 255/35-18 rear tires.

Wheels

  • Front Wheel Size: 18x9" ET30 or ET31 (EC-7)
  • Rear Wheel Size: 18x10" ET33
    • Available in: EC-7, SM-10
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 245/40-18
    • Rear Tire Size: 275/35-18
    • 255/35-18 front tires can also be used as a direct fit.
    • 5mm front spacers may be required with certain aftermarket suspensions, see below.
    • Rolled rear fenders may be required to prevent rubbing depending on ride height.
    • LCI: Sedan and wagon will require rolled rear fenders and/or negative camber to prevent rubbing. 265/35-18 rear tires will also help to reduce the likelihood of rubbing.
    • xDrive must use 235/40-18 front and 265/35-18 rear tires.
    • xDrive LCI sedan and wagon must use 235/40-18 front and 265/35-18 rear tires with rolled rear fenders.

Wheels

  • Front Wheel Size: 19x9" ET28 (ARC-8) or ET30
  • Rear Wheel Size: 19x9.5" ET22
    • Available in: ARC-8, ARC-8RT, EC-7, ML-10RT, SM-10, VS-5RS

Tires

  • APEX Staff Pick:
    • Front Tire Size: 245/35-19
    • Rear Tire Size: 265/30-19
    • Rolled rear fenders may be required to prevent rubbing depending on ride height.
    • 255/30-19 rear tires can also be used to reduce the likelihood of rubbing.
    • LCI: Sedan and wagon must use 19x9.5" ET33 with 265/30-19 tires, and may require rolled rear fenders to prevent rubbing.
    • xDrive must use 235/35-19 front and 265/30-19 rear tires.
    • xDrive LCI sedan and wagon must use 225/35-19 front and 19x9.5" ET33 rear with 255/30-19 tires.

Performance Street and Track Wheel Fitment

Wider fitments for enhanced performance

  • Blue BMW 3 Series - ARC-8 in Anthracite
    BMW 3 Series E90 E91 E92 E93
  • White BMW 3 Series - ARC-8 in Satin Bronze
    BMW 3 Series E90 E91 E92 E93
  • Grey BMW 3 Series - FL-5 in Race Silver
    BMW 3 Series E90 E91 E92 E93
  • Silver BMW 3 Series - ARC-8 in Hyper Silver
    BMW 3 Series E90 E91 E92 E93
  • Black BMW 3 Series - ARC-8 in Satin Black
    BMW 3 Series E90 E91 E92 E93
  • Black BMW 3 Series - ARC-8 in Anthracite
    BMW 3 Series E90 E91 E92 E93
  • 1 / 4

These fitments prioritize (in order): 1. Performance 2. Ease of fitment 3. Aesthetics

These fitments are effective for both performance-oriented street cars and weekend track warriors. The suspension type, alignment settings, and tire brand/size can be changed accordingly to work for either scenario.

Square Setups Recommended for most types of street and performance driving. Allows proper front-to-rear tire rotation to extend tire life & improve handling balance.

Wheels

  • Front Wheel Size: 17x9" ET30
  • Rear Wheel Size: 17x9" ET30
    • Available in: ARC-8, ARC-8RT, ML-10RT, VS-5RS

Tires

  • APEX Staff Pick:
    • Front Tire Size: 245/40-17
    • Rear Tire Size: 245/40-17
    • Direct fit.
    • 255/40-17 can be used but may require front negative camber.
    • 5mm front spacers may be required with certain aftermarket suspensions, see below.

Wheels

  • Front Wheel Size: 18x9" ET30 or ET31 (EC-7)
  • Rear Wheel Size: 18x9" ET30 or ET31 (EC-7)
    • ARC-8, ARC-8RT, EC-7, EC-7RS, ML-10RT, SM-10, SM-10RS, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 255/35-18
    • Rear Tire Size: 255/35-18
    • Direct fit.
    • 335is models may experience slight tire contact on front fender liner during full-lock turns.
    • 245/40-18 tires can also be used as a direct fit option.
    • 5mm front spacers may be required with certain aftermarket suspensions, see below.

Staggered Setups Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width.

Wheels

  • Front Wheel Size: 17x9" ET30
  • Rear Wheel Size: 17x9.5" ET35
    • Available in: ARC-8, ARC-8RT, ML-10RT, VS-5RS

Tires

  • APEX Staff Pick:
    • Front Tire Size: 245/40-17
    • Rear Tire Size: 255/40-17
    • Direct fit.
    • 5mm front spacers may be required with certain aftermarket suspensions, see below.
    • 275/40-17 rear tires can be used with rolled rear fenders and/or negative camber.
    • LCI: Sedan and wagon must use 255/40-17 rear tires to prevent rubbing. 275/40-17 rear tires can be used with rolled fenders and/or negative camber.
    • xDrive must use 225/45-17 front and 255/40-17 rear tires.

Wheels

  • Front Wheel Size: 18x9" ET30 or ET31 (EC-7)
  • Rear Wheel Size: 18x10" ET33
    • Available in: EC-7, SM-10
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 245/40-18
    • Rear Tire Size: 275/35-18
    • 255/35-18 front tires can also be used as a direct fit.
    • 5mm front spacers may be required with certain aftermarket suspensions, see below.
    • Rolled rear fenders may be required to prevent rubbing depending on ride height.
    • LCI: Sedan and wagon will require rolled rear fenders and/or negative camber to prevent rubbing. 265/35-18 rear tires will also help to reduce the likelihood of rubbing.
    • xDrive must use 235/40-18 front and 265/35-18 rear tires.
    • xDrive LCI sedan and wagon must use 235/40-18 front and 265/35-18 rear tires with rolled rear fenders.

LCI Sedan and Wagon-Specific Staggered Setups Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width. This staggered fitment is produced specifically for the LCI E90/E91 chassis where rear fender clearance is reduced.

Wheels

  • Front Wheel Size: 18x9" ET31
  • Rear Wheel Size: 18x9.5" ET43
    • Available in: EC-7
    • Popular fitment

Tires

  • APEX Staff Pick:
    • Front Tire Size: 255/35-18
    • Rear Tire Size: 265/35-18
    • Direct fit.
    • 335is models may experience slight tire contact on front fender liner during full-lock turns.
    • 275/35-18 rear tires can be used with rolled fenders and/or negative camber.
    • xDrive must use 235/40-18 front and 265/35-18 rear tires.

Hardcore Track Wheel Fitment

Track focused fitments that require significant modifications

  • Red BMW 3 Series - SM-10 in Race Silver
    BMW 3 Series E90 E91 E92 E93

These fitments prioritize (in order): 1. Performance 2. Ease of fitment 3. Aesthetics

These no-compromise fitments are ideal for dedicated track / race cars. They rely on aggressive negative camber specifications and often require rolled rear fenders to prevent rubbing. Since you'll be using all available real estate under the fender arches to accommodate these wide wheels, coilovers with linear race springs are a must for inner clearance (JRZ, MCS, Ground Control, AST, Moton, etc.).

Square Setups Recommended for most types of street and performance driving. Allows proper front-to-rear tire rotation to extend tire life & improve handling balance.

Wheels

  • Front Wheel Size: 17x9.5" ET35
  • Rear Wheel Size: 17x9.5" ET35
    • Available in: ARC-8, ARC-8RT, ML-10RT, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick:
  • Front Tire Size: 255/40-17
  • Rear Tire Size: 255/40-17
    • At least 5mm front spacers are required for inner strut clearance. Aftermarket suspensions that are known for reduced inner clearance (see below) can not be used with this fitment.
    • Front negative camber may be required.
    • 275/40-17 tires can be used with additional negative camber and may require rolled rear fenders. Not recommended for LCI Sedans & Wagons.

Wheels

  • Front Wheel Size: 18x9.5" ET35
  • Rear Wheel Size: 18x9.5" ET35
    • ARC-8, ARC-8RT, EC-7, EC-7RS, ML-10RT, SM-10, VS-5RS
    • Popular fitment

Tires

  • APEX Staff Pick:
  • Front Tire Size: 265/35-18
  • Rear Tire Size: 265/35-18
    • At least 5mm front spacers are required for inner strut clearance. Aftermarket suspensions that are known for reduced inner clearance (see below) can not be used with this fitment.
    • At least -3 degrees of front negative camber required.
    • 275/35-18 tires can be used with additional negative camber.
    • LCI: Sedan and wagon may require rolled rear fenders and/or negative camber to prevent rubbing.

Staggered Setups Maintains stock-like handling characteristics, tires can only be rotated left to right. Maximizes both front and rear tire width.

Wheels

  • Front Wheel Size: 18x9.5" ET35
  • Rear Wheel Size: 18x10" ET33
    • EC-7, SM-10
    • Popular fitment

Tires

  • APEX Staff Pick:
  • Front Tire Size: 265/35-18
  • Rear Tire Size: 275/35-18
    • At least 5mm front spacers are required for inner strut clearance. Aftermarket suspensions that are known for reduced inner clearance (see below) can not be used with this fitment.
    • At least -3 degrees of front negative camber required.
    • Rolled rear fenders may be required to prevent rubbing depending on ride height.
    • LCI: Sedan and wagon will require rolled rear fenders and/or negative camber to prevent rubbing.
    • xDrive must use 235/40-18 front and 265/35-18 rear tires.
    • xDrive LCI sedan and wagon must use 235/40-18 front and 265/35-18 rear tires with rolled rear fenders.

Winter Wheel Fitment

Our wheels are popular for winter use because of their unmatched caliper clearance. We recommend a square fitment in order to allow front-to-rear tire rotation, although staggered fitments can also be used.

Square setups

Wheels

  • Front Wheel Size: 18x9" ET30 or ET31 (EC-7)
  • Rear Wheel Size: 18x9" ET30 or ET31 (EC-7)
    • Available in: ARC-8, ARC-8RT, EC-7, EC-7RS, ML-10RT, SM-10, SM-10RS, VS-5RS

Tires

  • APEX Staff Pick:
  • Front Tire Size: 245/40-18 winter tires
  • Rear Tire Size: 245/40-18 winter tires
    • Direct fit

Wheels

  • Front Wheel Size: 19x9" ET28 (ARC-8) or ET30
  • Rear Wheel Size: 19x9" ET28 (ARC-8) or ET30
    • Available in: ARC-8, ARC-8RT, EC-7, ML-10RT, SM-10, VS-5RS

Tires

  • APEX Staff Pick:
    • Front Tire Size: 245/35-19 winter tires
    • Rear Tire Size: 245/35-19 winter tires
    • Direct fit

Additional Resources

Concavity & Face Profiles

Each of our wheel designs is available in two or three different levels of concavity, which we call Profiles. The Profile is dictated by the width and offset, meaning wide lower-offset wheels will have more concavity, while narrow higher-offset wheels will have less concavity.

Identifying Suspension Types

If you’re using coilovers, see the image below to identify which type of coilover spring you have, as it may effect your wheel fitment.

Aftermarket E9x 3-Series Suspensions Known To Reduce Inner Clearance (includes but not limited to):

  • Bilstein PSS9 & PSS10
  • KW Height-Adjustable Spring (HAS) kit
  • KW Variants
  • KW Clubsports
  • Öhlins Road & Track

About Camber Plates

We've used an M3 photo, but the principles are the same. Adjustable camber plates do more than just aid in wide wheel and tire fitment. They provide increased grip and reduced tire wear by spreading the load evenly during cornering. Learn more in our blog article, The Positives of Negative Camber.

Big Brake Kit Clearances

We have tested many brake kits with the wheels listed in this guide. Please email us with any questions related to brake clearance, we’ll be happy to help.

Still have questions?

Fill out our Fitment Recommendation form Call us: 925-245-0773 Email us: support@apexraceparts.com

If you like cheap gear you will hate this newsletter.
