Front, 18", Profile 1, 5 Lugs, Anthracite- Rear, 18", Profile 1, 5 Lugs, Anthracite

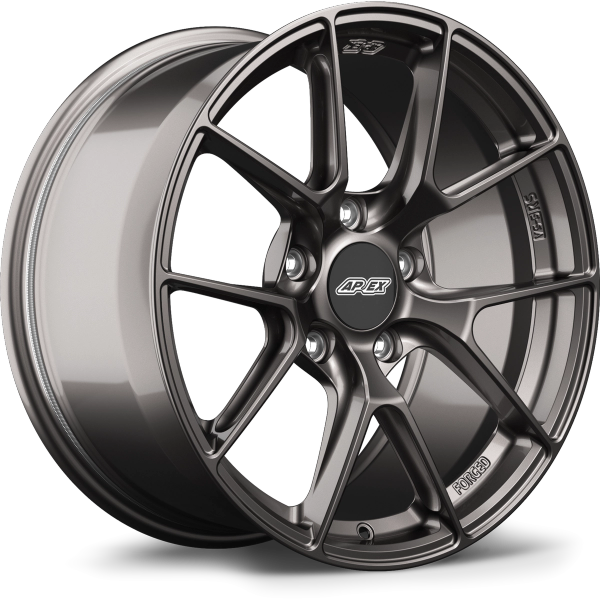

Chevrolet C5 Corvette Wheels
Lightweight forged and flow formed Apex wheels for your 1997-2004 C5 Corvette including Base/Z51, Z06.
Construction Type
AllFinish: Anthracite
Total
$2,956.00$2,512.60Overview
Chevrolet Corvette C5 Wheel Performance
C5 Corvettes are a common sight at track days, but most available wheel options are either too narrow or not up to the task of prolonged track use. If you want to extract even more performance from your car, a lightweight chassis specific set of wider wheels and tires will make a world of difference. We created forged wheels such as the Apex VS-5RS and SM-10RS along with flow formed wheels such as the EC-7 and SM-10 to increase performance. Find out what fitment is best for your application in our Chevrolet C5 Corvette Wheel & Tire Fitment Guide.
A Brief History of the 1997-2004 Corvette
Our selection of C5 Corvette wheels are ready to bolt on to your base, FRC, Z51, or Z06 to improve performance and give it a custom appearance. America’s longest running sportscar, the C5 Corvette was all new in 1997. It featured front and rear double wishbone suspension for the first time, along with mounting the transmission in a rear transaxle configuration for better weight distribution. Additionally, the old LT1 was replaced with a new, all aluminum 5.7L LS1. This was the beginning of the legendary LS series motors, shoved into the car that put the Corvette into true supercar territory.
GM took the C5 racing in multiple series throughout its lifespan. Most notably, the C5.R was a full race car that still had production car underpinnings to really showcase what they were capable of. Featuring a Katech assembled motor, this 600+ horsepower monster racked up 31 wins in just 55 appearances in the American Le Mans Series, capped off by four straight constructors championships from 2001-2004.
What Makes it a Good Track Car
The C5 Z06 is one of the best bang for your buck track cars in existence, and has been for the past decade. It combines everything you could want from a track car for all skill levels. Reliable drivetrains, easy to source parts with infinite aftermarket support, V8 power, rear wheel drive, and a chassis that just loves to be tossed through corners with 50/50 weight distribution. While not completely without their flaws, it’s a hard bargain to pass up. Just ask Road & Track: The Cheapest Trackday Hero You Can Get Is a C5 Corvette Z06.
C5 Z06 Z51 Gallery
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
Chevrolet Corvette C5 Z06 Z51
- 1 / 2
VS-5RS Specifications
Reproductive Harm - www.p65warnings.ca.cov
REAL DRIVERS NEED REAL PERFORMANCE.
Not all claims of performance are backed up by facts—and it's a big problem. Don't get sold fashion when you want function.
Fitment guides
Which Wheels Should I Get?
Check out our Fitment Guides, the most in-depth, authoritative guides for wheel and tire fitments, tailored for your vehicle and how you drive it.
VS-5RS features
10K Tons of Pressure
Our new forgings weigh as much as 120 pounds before machining. To form such a thick blank we require special equipment capable of 10,000 metric tons of pressure. This extreme pressure increases the strength of the aluminum by eliminating porosity and improving the grain structure.
True Motorsport Blanks
Many companies use 3rd-party blanks intended for non-motorsport wheels which can severely limit sizes, concavity, spoke design, and critical brake clearance. We designed our very own blank profiles from scratch to give us total control over the final product.
Side-Milled Spokes
To be as light as possible the VS-5RS features extra-deep, side-milled spokes. Any excess material that doesn’t add strength is machined out using a precision CNC ball cutter. Side-milling is often deemed cost-prohibitive by others, but for true performance without compromise we believe it's essential.
A Stronger Lightweight Wheel
Our forged Sprint™ wheels are lightweight without the strength compromises found on typical lightweight wheels. First, we machined out as much material as possible, then we purposefully added one pound back to reinforce critical areas, creating a stronger inner lip and a higher load rating.² What’s the point of a lightweight wheel if it’s fragile?
Load Ratings (lbs)
JWL Load Standard
1521
Typical Forged Wheels
1521
APEX Flow Formed
1550
APEX Forged Sprint™ Line
1600
Weight Optimized

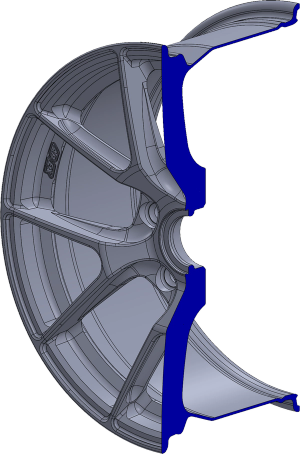

We conducted extensive Finite Element Analysis (FEA) to reinforce high-stress areas and to remove material where it didn’t improve strength. The result is a wheel that is exceptionally light without the strength compromises found on typical lightweight wheels.²
Wheel Weight
Load Rating
APEX Sprint™ Line
18 lbs
1600 lbs
APEX Flow Formed
21 lbs
1550 lbs
Independently Tested
We don't rely solely on computer simulations or unverifiable in-house testing. We believe independent testing is critical to protect consumers in this unregulated industry. We chose STL, an independent lab in Ohio, to test our Sprint™ wheels far above JWL standards, including increases in testing duration, impact drop height, and total load.
Tougher Inner Lip
Introducing the Sprint™ spec inner lip, with a unique channel profile that makes it even stronger than our previous designs. So even though our Sprint™ wheels are pounds lighter than comparable flow formed wheels, the inner lip is stronger.
32%
More reinforcement
than our flow formed wheels3
Big Brake Clearance
From day one, APEX has been on a mission to build wheels that clear big brakes. Our new forged wheels are the product of everything we’ve developed over the past 10+ years, including an innovative high-clearance barrel design and vehicle-specific spoke profiles.
Deeper Concavity
Our new forgings were redesigned to create extra deep, concave spoke profiles. Their new shape allows us to make any profile, from flat to deep and everything in between. Each one is optimized for a specific application using 3D laser scans of factory and aftermarket brake kits.
Paintless Knurled Bead
Whether it's a day at the track or months of street driving, repeated hard braking and acceleration can make a tire slip along the bead seat and go out of balance, causing vibration. Knurled beads help, but are less effective when painted over. Our forged line features unpainted knurled beads that stay sharp and maximize grip.
Built for Impact Sockets
Track wheels need track tools. Don’t settle for wheels that require undersized tuner lugs or thin walled sockets. All APEX wheels accommodate over-sized race lugs and impact sockets to make swapping wheels lightning fast.
32mm
Socket Diameter Clearance
Laser-Engraved Specs
As track enthusiasts ourselves, we know how frustrating it is to try to locate and decipher wheel specs that have been hastily hammered into the rim or become unreadable over time. With our new Sprint™ wheels, we chose to invest a little extra and laser-engrave the specs on the barrel, in plain sight, making them easy to find and read. (You’re welcome.)
Additional features
Hub Centric
All VS-5RS wheels are purpose built for select vehicle applications. Very few applications require centering rings.
Center Caps
All APEX wheels come with our gloss black cap included that is interchangeable with the OE cap. We also offer additional colors for select fitments.
Wheel Hardware
APEX wheels can be used with all OEM mounting hardware, proper aftermarket hardware and most wheel spacers. Wheel locks and stud conversion kits also work perfectly.
TPMS
All APEX wheels accept OEM and aftermarket Tire Pressure Monitoring Sensors and standard fit valve stems. If you don’t have sensors, then select from our metal stems available in multiple finishes.
Accessories
A Wheel You Can Depend On
Accidental damage replacement
Curb rash or pothole damage on the street? Make an oopsie at the track? We’ve all been there. APEX is proud to offer 50% off replacement wheels, no matter the damage.
Lifetime warranty
All APEX wheels come with a lifetime structural warranty against defects in workmanship and materials, plus a 1 year finish warranty. Exchanges are fast, easy, and hassle-free.
¹ VS-5RS vs. the original EC-7R, comparing side milling of 18x9” ET46 5x130 fitment.
² Strength and weight comparisons are based on an 18” BMW 5x120 wheel.
³ Comparing the amount of material reinforcement in our standard inner lip profile vs Sprint™ spec inner lip profile on an 18” wheel.
⁴ All wheels compared with equivalent 18x10” ET25 5x120mm / 72.56mm fitment
