BMW F90 M5 Wheels

Lightweight forged & flow formed Apex wheels for your 2018-2022 BMW F90 M5. Browse our inventory of BMW wheels.

Construction Type

All

Forged Sprint line

Forged Touring line

Flow Formed Evolution line

Finish: Anthracite

Total

$3,416.00

Overview

BMW F90 M5 Wheel Performance

While it makes for a ferociously effective track car, the OE F90 M5 wheel fitment can limit performance. The factory sizes are optimized to be compatible with the xDrive systems standard on these cars, but wider wheel and tire fitments can be used to increase performance. We created forged wheels like the VS-5RS and SM-10RS to let M5 owners run lighter weight forged fitments. With the added complexity of the AWD system, tire selection and wheel fitment are critical with these M5s. Be sure to review our F90 M5 wheel and tire fitment guide before purchasing.

A Brief History of the F90 M5

Launched in 2017, the 6th generation M5 represented both a dramatic shift in the core components of the car while simultaneously continuing the M5 philosophy. Despite dramatic shifts in some of the car’s design, a set of aftermarket F90 M5 wheels remains one of the best modifications owners can make to improve performance.

The F90 was the first M5 to feature all-wheel drive or xDrive. All F90 M5 models are AWD with the option to go RWD only via iDrive mode selection. Paired to the AWD system, is ZF’s venerable 8-speed transmission, the only transmission option available. Gone was the DCT commonly found on the prior F10 M5 and 6-speed manual option available only in North American markets. Luckily, despite growing in size compared to the F10 before it, the F90 M5 was actually slightly lighter than its predecessor. This was especially impressive when you factor in the weight of the AWD transfer case and associated hardware.

What Makes it a Good Track Car

The massive power and torque delivered from the updated S63 power plant was always going to be impressive, but the AWD system gave this new M5 a surefootedness that prior, less powerful generations lacked. On track, massive brakes haul down the M5 giving consistent lap times despite the admittedly heavy overall weight. Considering all the luxury appointments and interior space and comfort remain in the M5 while on track performance increases dramatically, the M5 moves the bar forward in terms of the dual nature of super sedan ownership. With a high overall price tag and features new to its generation, the F90 was always going to be controversial. Get SavageGeese’s take on the modern M5 competition here.

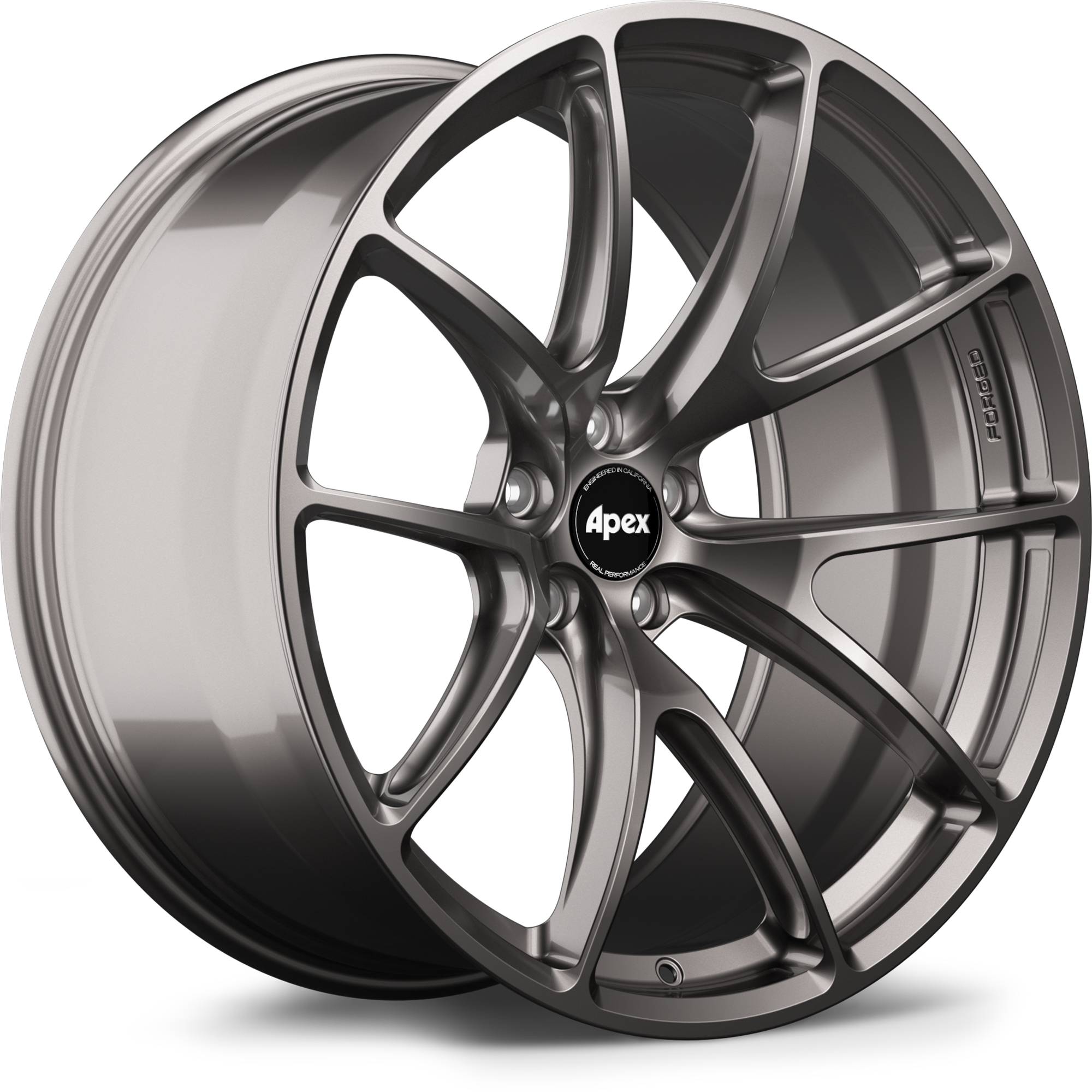

VS-5RS Specifications


Front
Rear
SKU
VS5RS1...
VS5RS1...
Wheel Size
19x9.5" ET25
19x11" ET40
Face Profile
Profile 3
Profile 3
Bolt Pattern
5x112mm
5x112mm
Center Bore
66.6mm
66.6mm
Centering Ring
N/A Direct fit
N/A Direct fit
Lug Seat
60 Degree Conical
60 Degree Conical
Center Cap
Gloss Black
Gloss Black
OEM Cap
Compatible*
Compatible*
Load Rating
1,600 lbs
1,600 lbs
Weight
~19.1 lbs
~20.2 lbs
Tested By
STL
STL
Test Reference #
STL-AX1-0019
STL-AX1-0019
Front Profile
Rear Profile
Product image
Product image
Reproductive Harm - www.p65warnings.ca.cov

REAL DRIVERS NEED REAL PERFORMANCE.

Not all claims of performance are backed up by facts—and it's a big problem. Don't get sold fashion when you want function.

Fitment guides

Which Wheels Should I Get?

Check out our Fitment Guides, the most in-depth, authoritative guides for wheel and tire fitments, tailored for your vehicle and how you drive it.

VS-5RS features

10K Tons of Pressure

Our new forgings weigh as much as 120 pounds before machining. To form such a thick blank we require special equipment capable of 10,000 metric tons of pressure. This extreme pressure increases the strength of the aluminum by eliminating porosity and improving the grain structure.

True Motorsport Blanks

Many companies use 3rd-party blanks intended for non-motorsport wheels which can severely limit sizes, concavity, spoke design, and critical brake clearance. We designed our very own blank profiles from scratch to give us total control over the final product.

Learn More

Side-Milled Spokes

To be as light as possible the VS-5RS features extra-deep, side-milled spokes. Any excess material that doesn’t add strength is machined out using a precision CNC ball cutter. Side-milling is often deemed cost-prohibitive by others, but for true performance without compromise we believe it's essential.

Learn More

A Stronger Lightweight Wheel

Our forged Sprint™ wheels are lightweight without the strength compromises found on typical lightweight wheels. First, we machined out as much material as possible, then we purposefully added one pound back to reinforce critical areas, creating a stronger inner lip and a higher load rating.² What’s the point of a lightweight wheel if it’s fragile?

Load Ratings (lbs)

JWL Load Standard

1521

Typical Forged Wheels

1521

APEX Flow Formed

1550

APEX Forged Sprint™ Line

1600

Weight Optimized

We conducted extensive Finite Element Analysis (FEA) to reinforce high-stress areas and to remove material where it didn’t improve strength. The result is a wheel that is exceptionally light without the strength compromises found on typical lightweight wheels.²

Wheel Weight

Load Rating

APEX Sprint™ Line

18 lbs

1600 lbs

APEX Flow Formed

21 lbs

1550 lbs

Independently Tested

We don't rely solely on computer simulations or unverifiable in-house testing. We believe independent testing is critical to protect consumers in this unregulated industry. We chose STL, an independent lab in Ohio, to test our Sprint™ wheels far above JWL standards, including increases in testing duration, impact drop height, and total load.

Learn More

Tougher Inner Lip

Introducing the Sprint™ spec inner lip, with a unique channel profile that makes it even stronger than our previous designs. So even though our Sprint™ wheels are pounds lighter than comparable flow formed wheels, the inner lip is stronger.

32%

More reinforcement

than our flow formed wheels3

Learn More

Big Brake Clearance

From day one, APEX has been on a mission to build wheels that clear big brakes. Our new forged wheels are the product of everything we’ve developed over the past 10+ years, including an innovative high-clearance barrel design and vehicle-specific spoke profiles.

Deeper Concavity

Our new forgings were redesigned to create extra deep, concave spoke profiles. Their new shape allows us to make any profile, from flat to deep and everything in between. Each one is optimized for a specific application using 3D laser scans of factory and aftermarket brake kits.

Paintless Knurled Bead

Whether it's a day at the track or months of street driving, repeated hard braking and acceleration can make a tire slip along the bead seat and go out of balance, causing vibration. Knurled beads help, but are less effective when painted over. Our forged line features unpainted knurled beads that stay sharp and maximize grip.

Learn More

Built for Impact Sockets

Track wheels need track tools. Don’t settle for wheels that require undersized tuner lugs or thin walled sockets. All APEX wheels accommodate over-sized race lugs and impact sockets to make swapping wheels lightning fast.

32mm

Socket Diameter Clearance

Laser-Engraved Specs

As track enthusiasts ourselves, we know how frustrating it is to try to locate and decipher wheel specs that have been hastily hammered into the rim or become unreadable over time. With our new Sprint™ wheels, we chose to invest a little extra and laser-engrave the specs on the barrel, in plain sight, making them easy to find and read. (You’re welcome.)

Additional features

Hub Centric

All VS-5RS wheels are purpose built for select vehicle applications. Very few applications require centering rings.

Center Caps

All APEX wheels come with our gloss black cap included that is interchangeable with the OE cap. We also offer additional colors for select fitments.

Wheel Hardware

APEX wheels can be used with all OEM mounting hardware, proper aftermarket hardware and most wheel spacers. Wheel locks and stud conversion kits also work perfectly.

TPMS

All APEX wheels accept OEM and aftermarket Tire Pressure Monitoring Sensors and standard fit valve stems. If you don’t have sensors, then select from our metal stems available in multiple finishes.

Accessories

A Wheel You Can Depend On

Accidental damage replacement

Curb rash or pothole damage on the street? Make an oopsie at the track? We’ve all been there. APEX is proud to offer 50% off replacement wheels, no matter the damage.

See terms and conditions.

Lifetime warranty

All APEX wheels come with a lifetime structural warranty against defects in workmanship and materials, plus a 1 year finish warranty. Exchanges are fast, easy, and hassle-free.

See terms and conditions.

¹ VS-5RS vs. the original EC-7R, comparing side milling of 18x9” ET46 5x130 fitment.

² Strength and weight comparisons are based on an 18” BMW 5x120 wheel.

³ Comparing the amount of material reinforcement in our standard inner lip profile vs Sprint™ spec inner lip profile on an 18” wheel.

⁴ All wheels compared with equivalent 18x10” ET25 5x120mm / 72.56mm fitment
