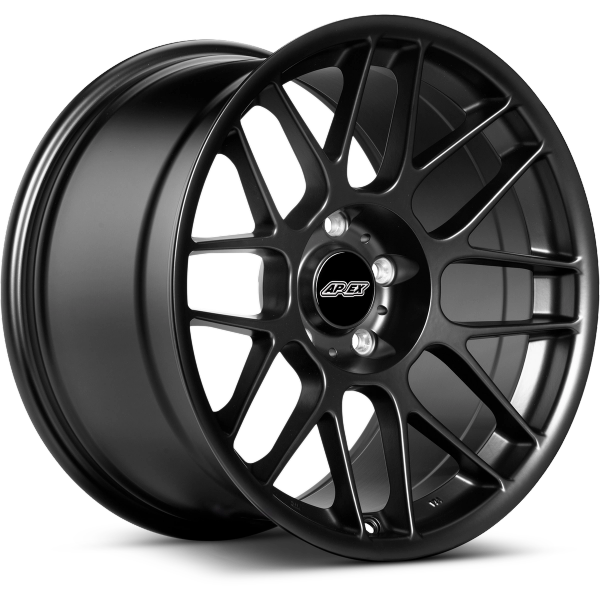

Front, 18", Profile 3, 5 Lugs, Satin Black- Rear, 18", Profile 3, 5 Lugs, Satin Black
BMW E90 E92 E93 3 Series Wheels
Lightweight Forged & Flow Formed apex wheels for your 2005-2011 E90 E91 E92 E93. Browse our inventory of BMW wheels.
9/9 Designs
Forged Sprint line
Forged Touring line
Flow Formed Evolution line
Flow Formed Classic line
Finish: Satin Black
Overview
BMW E90 E91 E92 E93 3 Series Wheel Performance
With significantly more power and torque on tap than prior generations of 3 series, the factory E90, E91, E92, and E93 3 series wheel fitments were undersized. 225 section front tires featured on most models with wider rear 255s standard on most staggered fitments, resulted in understeer at the limit. If you need to balance or increase the performance of your E9X 3 series, a lightweight set of forged wheels such as the VS-5RS, SM-10RS, EC-7RS or flow formed wheels such as the ARC-8, EC-7, FL-5, or SM-10 wheels is an easy first step. Review our chassis-specific fitments on our BMW E90 E92 E93 3 Series Wheel and Tire Fitment Guide.
About the BMW E9X 3 Series
First sold for the 2006 model year in North America, the E9X is the 5th generation of BMW 3 series. With a new naming strategy, the different body configurations were designated as follows; the E90 sedan, E91 touring, E92 coupe, and E93 hardtop convertible. In the U.S., a range of naturally aspirated inline 6 engines were available as well as a turbocharged unit named the N54B30 (later N55). This was the first time a turbo 3 series was offered in the U.S. market.
In typical BMW fashion, midway through the lifecycle, the E9X received a facelift for the 2009 model year. Changes were mainly cosmetic including upgraded LED taillights and some subtle changes to the bumpers and hood. One notable mechanical difference was an increase in rear track width of 24mm on the LCI sedan and wagon models (make note of this when shopping wheels!).
Possibly the most desirable edition, the 335is topped the E9X range sitting just below the E9X M3. Powered by an upgraded version of the N54 engine found in early 335i models, the 335is hit the charts at 320hp and 332 lb-ft of torque with an overboost function capable of delivering 370 ft-lbs for up to 7 seconds. This special edition also brought in the 7 speed DCT transmission as an option, borrowed from the M3.
If you’d like to learn more about the epic limited edition E92 335is, checkout the article linked below from Car & Driver: 2011 BMW 335is Coupe First Drive: A Mightier Wind.
What Makes it a Good Track Car
In naturally aspirated spec, the E9X 3 series is one of the most reliable BMW platforms. The N52 engine delivers silky smooth power, and does so with unshakeable reliability. Gone are the weak subframe, woes of leaky VANOS seals, and pesky DISA valves. The E9X will allow you to simply focus on what matters most, driving flat out.
If on the other hand, you’re someone who can never have enough power and loves the sound of a turbo, just be ready to spend some extra money on preventative maintenance, cooling mods, and replacement parts in general. The E9X 335i models are freaking awesome cars, they just need some extra attention when being pushed to the limit on track.
The OEM wheels on the E9X definitely leave a bit to be desired in terms of both looks and total grip available. As you’ll hear from every enthusiast pushing their own advice, tires make the biggest difference. While tires certainly are important, a wider set of wheels will provide that much needed sidewall support to allow for some seriously quick lap times. Good thing we’ve got a wide assortment of E90, E91, E92, and E93, 3 Series wheels perfect for any application.
E90 E91 E92 E93 Gallery
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
BMW 3 Series E90 E91 E92 E93
- 1 / 3
ARC-8 Specifications
Reproductive Harm - www.p65warnings.ca.cov Fitment guides
Which Wheels Should I Get?
Check out our Fitment Guides, the most in-depth, authoritative guides for wheel and tire fitments, tailored for your vehicle and how you drive it.
ARC-8 features
The Flow Form Advantage
Flow forming enables us to create high performance wheels without the price premium of forging. It improves the mechanical properties and grain structure of the barrel, increasing its strength and stiffness, which allows us to use less material and reduce weight. Thanks to our superior engineering, our flow formed wheels have a higher load rating than some competitors' forged wheels.
Big Brake Clearance
Big brakes often require bigger, heavier, more expensive wheels, which aren’t ideal in a performance environment. The ARC-8 accommodates many big brake kits, even with its classic deep-concave spokes. If you need more clearance, the forged ARC-8R or one of our curved spoke wheel designs has you covered.
Maximizing Concavity
We use the deepest concave face profiles we can for every application after factoring in critical clearances such as brake calipers. The ARC-8 utilizes 2 unique profiles to make this possible, with the deepest concave face delivering reduced weight and a stunningly aggressive appearance.
Weight Optimized
We conducted extensive Finite Element Analysis (FEA) to reinforce high-stress areas and to remove material where it didn’t improve strength. The result is a wheel that is exceptionally light without the strength compromises found on typical lightweight wheels.²
Built for Impact Sockets
Track wheels need track tools. Don’t settle for wheels that require undersized tuner lugs or thin walled sockets. All APEX wheels accommodate over-sized race lugs and impact sockets to make swapping wheels lightning fast.
32mm
Socket Diameter Clearance
Finishing Touches
The ARC-8 is finished using a multi-stage liquid paint over a powder coated base coat. This coating process leaves lug holes, center bores and mounting pads untouched, which ensures proper fit and torque values.
JWL and Beyond
All APEX Flow Formed wheels meet or meaningfully exceed JWL load rating requirements. Some manufacturers don't meet the minimum requirements, yet still claim to be compliant. Always compare load ratings to ensure you aren’t sacrificing critical strength for a slightly lighter wheel.
True VIA
The VIA is an independent wheel testing and auditing agency similar to TÜV. Many companies falsely claim their wheels have been certified, and even use the VIA stamp without permission. Our Flow Formed wheels have been certified, and we provide the registration numbers for every wheel. Protect yourself. Demand registration numbers from manufacturers.
Additional features
Hub Centric
All ARC-8 wheels are purpose built for select vehicle applications. Very few applications require centering rings.
Center Caps
All APEX wheels come with our gloss black cap included that is interchangeable with the OE cap. We also offer additional colors for select fitments.
Wheel Hardware
APEX wheels can be used with all OEM mounting hardware, proper aftermarket hardware and most wheel spacers. Wheel locks and stud conversion kits also work perfectly.
TPMS
All APEX wheels accept OEM and aftermarket Tire Pressure Monitoring Sensors and standard fit valve stems. If you don’t have sensors, then select from our metal stems available in multiple finishes.
Accessories
REAL DRIVERS NEED REAL PERFORMANCE.
Not all claims of performance are backed up by facts—and it's a big problem. Don't get sold fashion when you want function.
A Wheel You Can Depend On
Accidental damage replacement
Curb rash or pothole damage on the street? Make an oopsie at the track? We’ve all been there. APEX is proud to offer 50% off replacement wheels, no matter the damage.
Lifetime warranty
All APEX wheels come with a lifetime structural warranty against defects in workmanship and materials, plus a 1 year finish warranty. Exchanges are fast, easy, and hassle-free.
Footnotes
¹ All wheels compared with equivalent 18x10” ET25 5x120mm / 72.56mm fitment. Price displayed based on MSRP as of 5/16/2025.
Frequently Asked Questions
What are the factory alignment specs for BMW E90/E91/E92/E93 3-Series?
The factory alignment specs for BMW E90/E91/E92/E93 3-Series typically has front camber at -0.8° to -1.2°, front toe slightly positive (about 0.05° per side), rear camber at -1.5° to -2.0°, and slight rear toe-in (about 0.10°–0.15° per side). This varies slightly between models and trim levels.
How much does BMW E90/E91/E92/E93 3-Series weigh? (total weight of the vehicle)
E90 3-Series weigh between ~3,300 to 3,600 lbs depending on the model and options. A 328i weighs ~3,400 lbs, while a 335i is around 3,580 lbs. Options like all-wheel drive (xDrive) add additional weight.
What are the widest wheels I can run on a BMW E90/E91/E92/E93 3-Series without mods?
The widest wheels we recommend for unmodified BMW E90 3-Series are 9" wide for front and rear. This width provides the most tire options in popular 255/35-18 or 245/40-18 sizes. This setup works on both Pre-LCI and LCI models and on all variants of the chassis.
What are the wheel specs of a BMW E90/E91/E92/E93 3-Series?
The wheel specs of the E90/E91/E92/E93 3-Series depends on the model and options. Most have factory wheels that range from 16” to 19”, with offsets (ET) typically between 30–40mm. Available in both squared and staggered fitments.
How big are BMW E90/E91/E92/E93 3-Series wheels?
E90 3-Series wheels typically range from 16" to 19" in diameter. Base models often shipped with 16” or 17” wheels, while sport packages and higher trim levels like the 335i often have 18” or optional 19” wheels from the factory.
How wide are BMW E90/E91/E92/E93 3-Series wheels?
E90 3-Series wheels range from 7" to 9" wide. Base models typically use 7” to 7.5” wide wheels, while sport package and performance models, like the 335i, often have staggered setups with 8” wide fronts and 8.5” or 9” rears.
Are BMW E90/E91/E92/E93 3-Series wheels forged?
Most factory E90 3-Series wheels are cast, not forged. Standard models and sport packages typically use cast aluminum wheels. Some rare optional wheels, particularly those from BMW’s M Performance or high-end accessory catalog, are forged.
What TPMS does E90/E91/E92/E93 3-Series use?
The E90/E91/E92/E93 3-Series uses two different models of Huf TPMS, which differs between pre-LCI (2007-2009) and LCI (2009-2013) cars. The pre-LCI cars (pre-8/31/2009 production date) use RDE-011, while the LCI cars (produced after 9/1/2009) use RDE-012.
What is the difference between pre-LCI and LCI for a BMW E90/E91/E92/E93 3-Series?
The main differences between pre-LCI and LCI E90/E91/E92/E93 3-Series are styling and features. Most components remained the same mechanically, but some models had engine or transmission updates. Importantly, LCI E90 sedans and E91 wagons have a wider wheelbase in the rear, so LCI and pre-LCI have different fitment requirements.
Can I run staggered wheels with my xDrive BMW E90/E91/E92/E93 3-Series?
Yes, you can run staggered wheels on your xDrive BMW E90/E91/E92/E93 3-Series, but it’s important to keep the front and rear tire diameters nearly identical.
